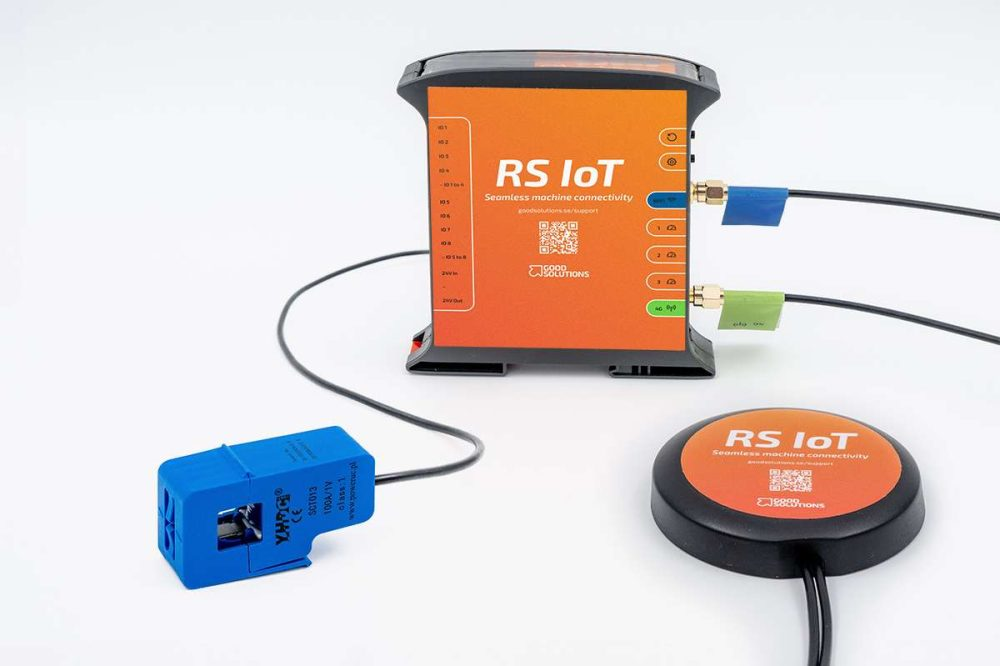

RS IoT - Technical Data
This is the standard hardware dedicated for RS Production.
RS IoT is developed by the company behind RS Production (Good Solutions).
Technical data
Physical
RS IoT A | RS IoT B | |
|---|---|---|
Dimensions | 120mm x 100mm x 22mm | |
Weight | 116g | |
Energy
RS IoT A | RS IoT B | |
|---|---|---|
Power consumption | Max 6W, Typical 0,6W | |
Power requirements | 24V DC, 110-240V AC (Power adaptor) | |
Environment
RS IoT A | RS IoT B | |
|---|---|---|
Operating temperature | -40℃ ~ +85℃ | |
Certification | CE | |
Connectivity
RS IoT A | RS IoT B | |
|---|---|---|
WiFi | 802.11 b/g/n 2.4 GHz to 2.5 GHz | |
Mobile* | LTE Cat-M B1/B2/B3/B4/B5/B8/B12/B13/ B14/B18/B19/B20/B25/B26/ B27/B28/B66/B85 | |
LTE Cat-NB B1/B2/B3/B4/B5/B8/B12/B13/ B18/B19/B20/B25/B26/B28/ B66/B71/B85 | ||
GSM 850/900/1800/1900MHz | ||
Ethernet | - | TCP, UDP, IPv6, IPv4 |
*The mobile network works in Austria, Belarus, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Gibraltar, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Russian Federation, Slovakia, Slovenia, Spain, Sweden, Switzerland, Ukraine, United Kingdom, Albania, Armenia, Australia, Azerbaijan, Canada, China, French Guiana, Georgia, Ghana, Hong Kong (China), Israel, Japan, Kazakhstan, Kyrgyzstan, Lesotho, Macedonia, Malaysia, Moldova, Montenegro, New Zealand, Pakistan, Serbia, Singapore, South Africa, South Korea, Taiwan, Tajikistan, Thailand, Turkey, United States, Uzbekistan, Vietnam, Anguilla, Antigua and Barbuda, Argentina, Barbados, British Virgin Islands, Cayman Islands, Chad, Chile, Colombia, Congo Dem. Congo Republic, Costa Rica, Dominica, Ecuador, El Salvador, Gabon, Grenada, Guatemala, India, Indonesia, Jamaica, Jordan, Kenya, Laos, Macao China, Madagascar, Mexico, Monaco, Montserrat, Mozambique, Nicaragua, Niger, Nigeria, Panama, Peru, Philippines, Rwanda, Saint Kitts and Nevis, Saint Lucia, Saint Vincent and Grenadines, Seychelles, Sri Lanka, Tanzania, Turks and Caicos Islands, Uruguay, Zambia, Bosnia and Herzegov, Brazil, Cambodia, Dominican Republic, Ivory Coast, Morocco, Myanmar, Cape Verde, Egypt, Tunisia, Uganda, Venezuela
IO-Connections
RS IoT A | RS IoT B | |
|---|---|---|
24V Digital inputs | 8, Max 50kHz | |
Accelerometer | 1kHz, 3-Axis, Max 2G, 16-Bit Resolution 0,00006g/step | |
Energy meter inputs | - | 3, 30A-600A Max reading |
Data
RS IoT A | RS IoT B | |
|---|---|---|
Data protocol | MQTT (SSL) | |
Event buffering | Up to 500 000 events with exact Timestamp | |
