RS Blackbox (no longer sold)

From April 2022, RS IoT is replacing RS Blackbox as standard hardware for new RS Production installations.

An older standard hardware for machine signals that no longer is offered to the market.

The RS Production software will support existing RS Blackboxes for a long, long time ahead.

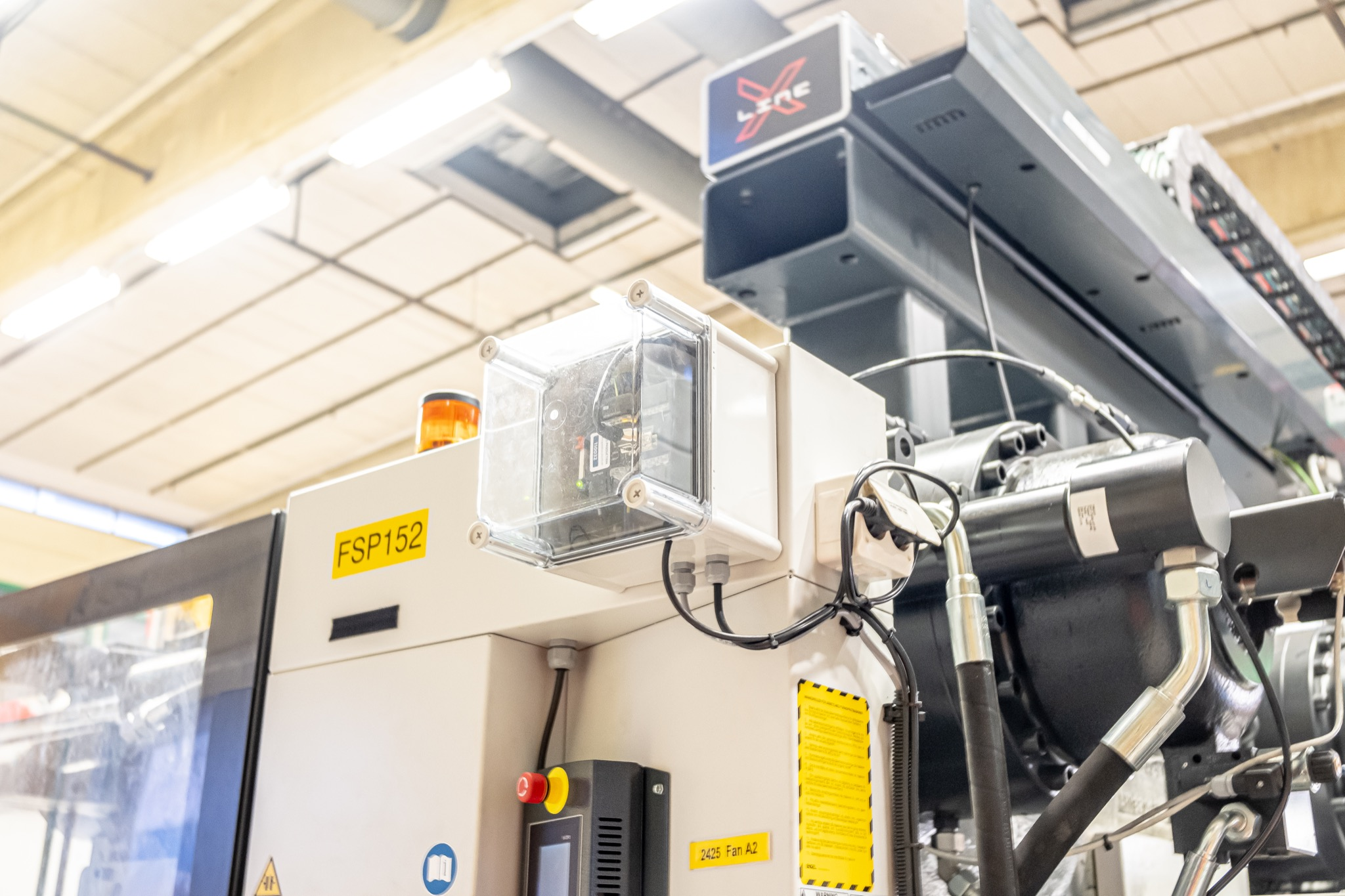

RS Blackbox is RS Production’s standard machine integration box, it uses 24v signals to collect machine data through cycle or on/off signals the inputs can also be used for example to collect stopreason or scraps. The blackbox is also equipped with a number of outputs that can be set from RS Production using the built in event-system. The number of inputs and outputs varies with the blackbox model.

Please contact our support in order to buy one and start collecting signals from you machines.

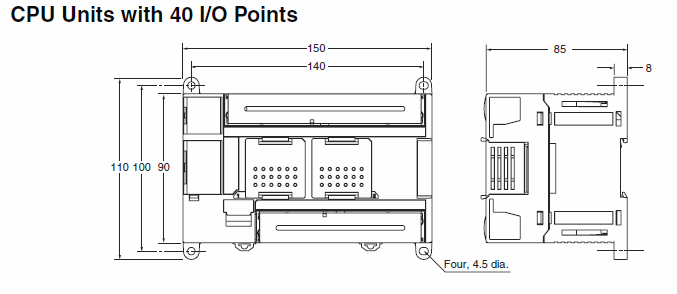

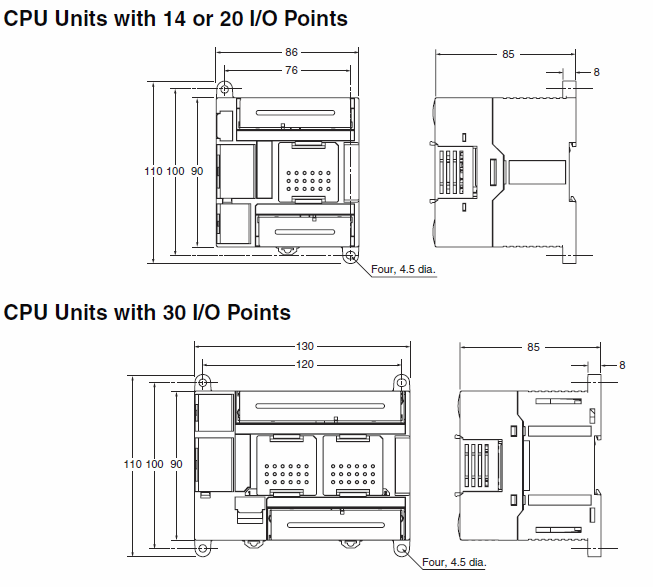

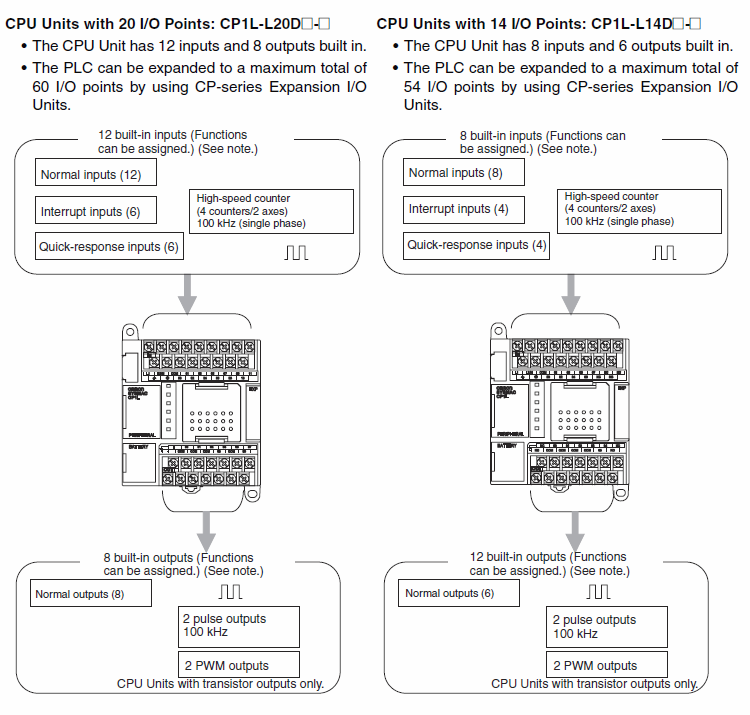

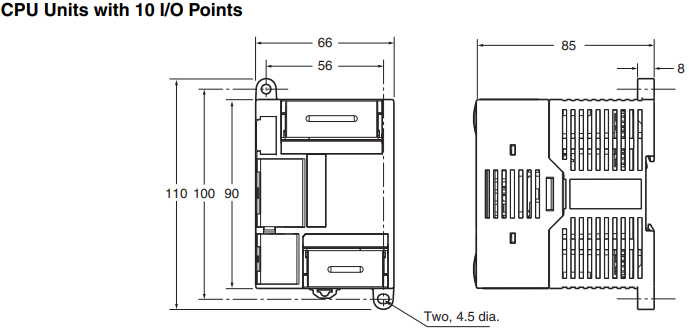

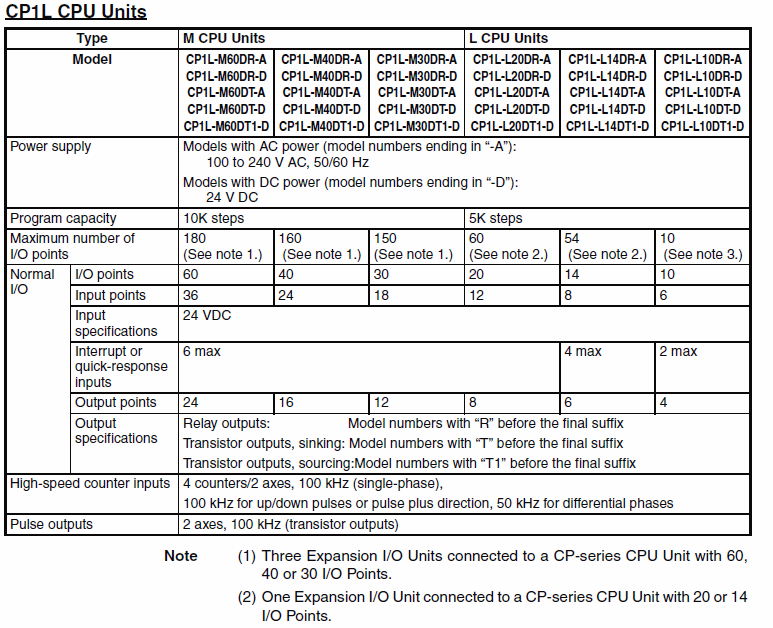

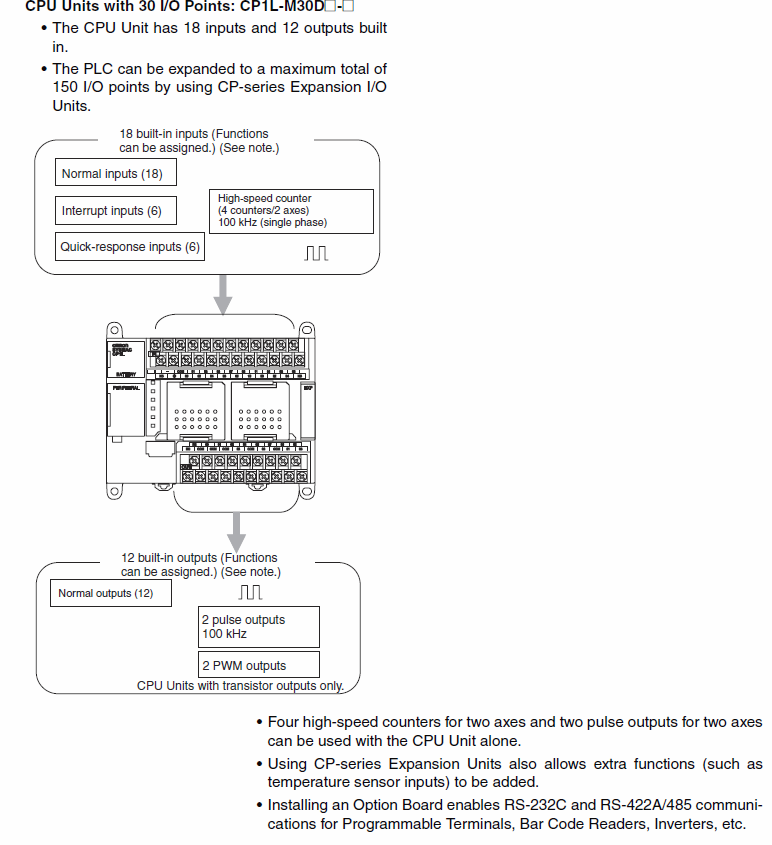

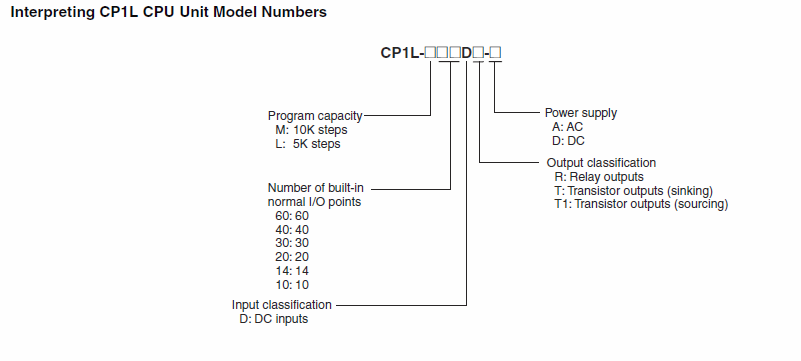

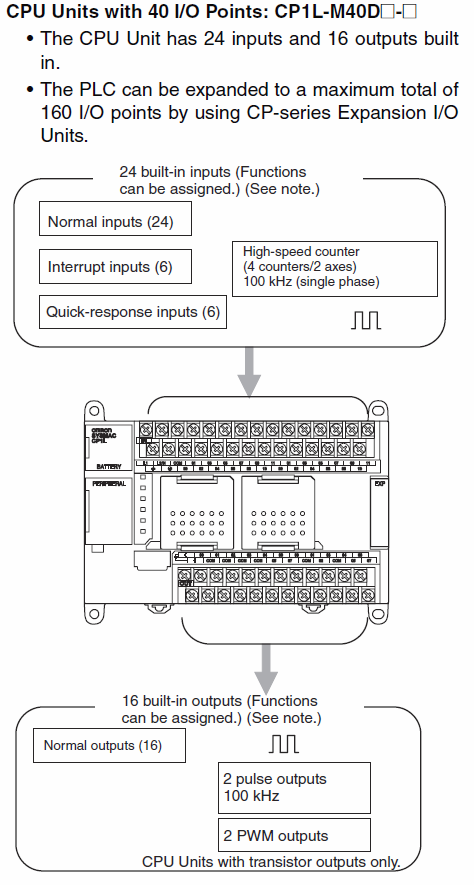

Detailed description of the RS Blackbox (CP1L)
