Network system overview

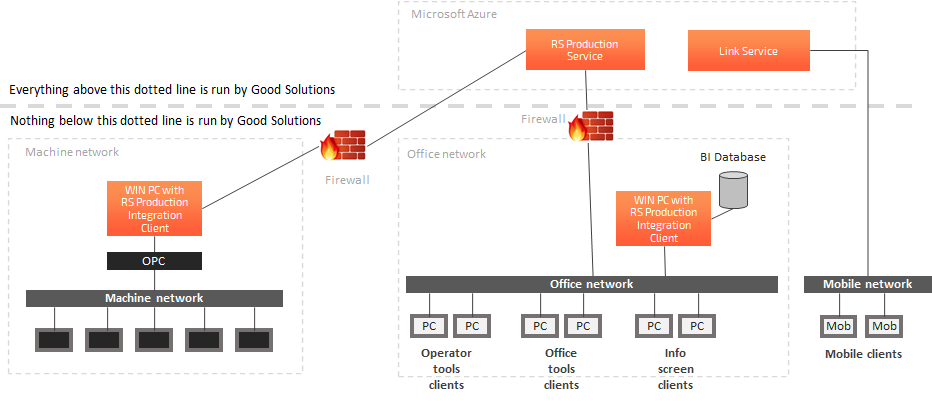

RS Production is delivered as a cloud operated service. Below is an example of a system overview from a typical factory installation with an OPC data source.

Firewalls and ports

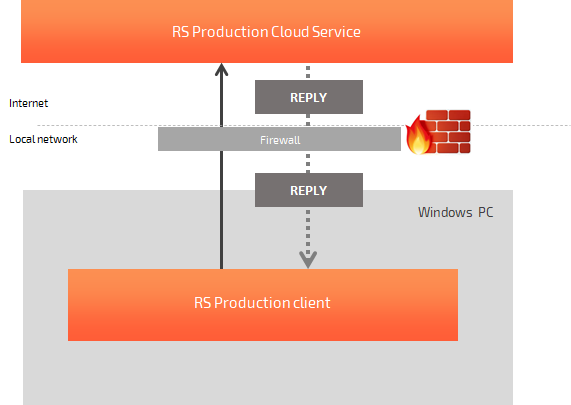

All data traffic to the RS Production cloud service is initiated from the local clients.

• There is never any traffic initiated from the RS Production Service on the Azure cloud.

• Traffic is on port 443 with https

  • or port 80 with http

See more details about ports on this page System Requirements

FAQ

What technology is the user clients based on?

It’s a server/client software with “rich” clients. The user interface is based on Microsofts Windows Presentation Foundation (WPF).
