Multisite
Capabilities for multisite setups

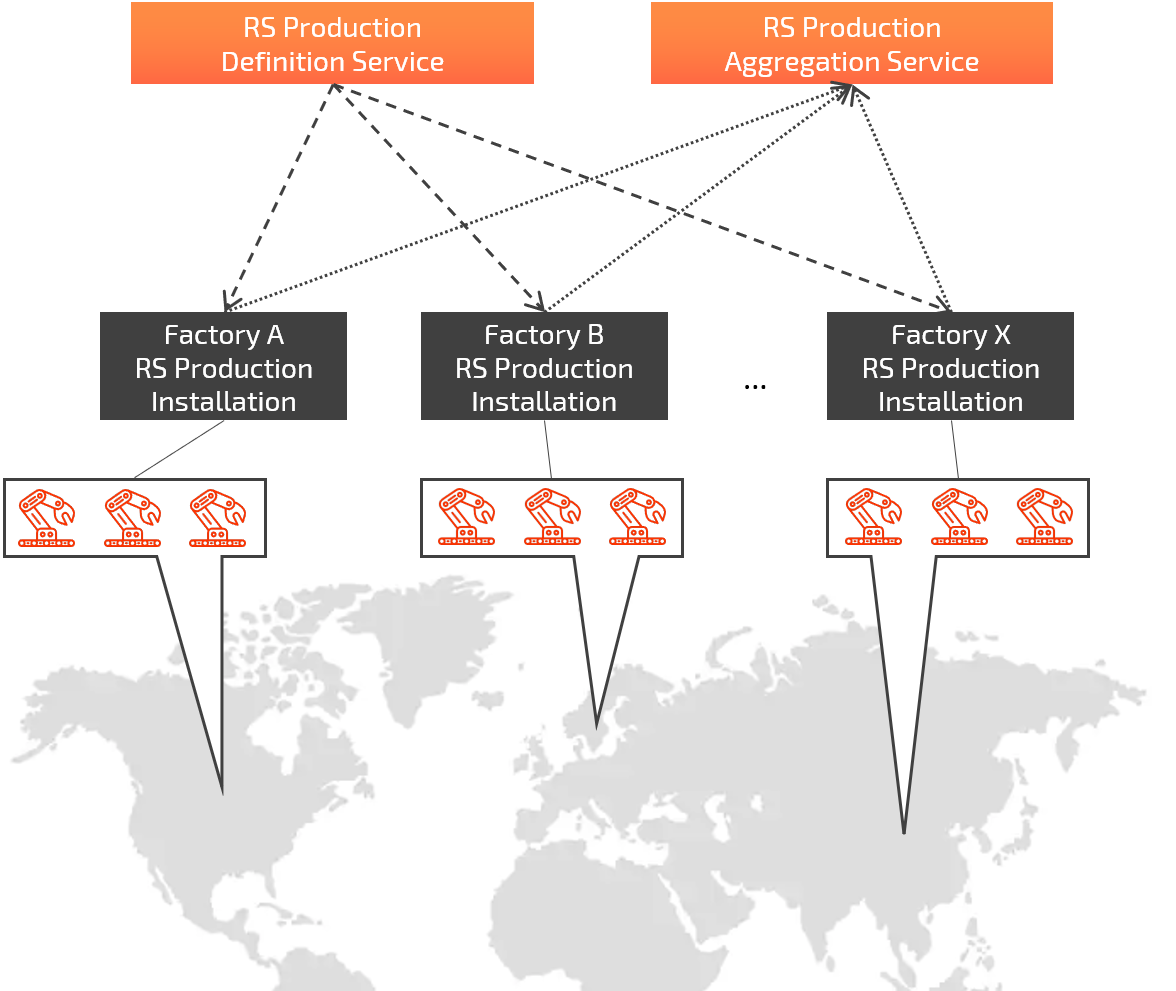

RS Production’s Multisite addon ensures efficient handling of multiple factory setups. It helps both in configuration and maintenance as well as with overview and reports.
Definition Service
The Definition Service help you to push out system settings and configurations from a central level to the local sites.
It ensures that the local sites get a common basic configuration aligned to your central policies (OEE etc).
For example it makes it possible to define and edit a standard loss reason structure on central level and distribute it to all local installations.
Definition service has version control, which makes it possible to create new packages without affecting the current version and publish the packages to one or more installations when the time is right. This also makes it possible to revert to a previous version if something needs to be adjusted.
It helps you to harmonize things between separate installations.
settings
loss model (reason codes and categories)
integrations
customizations
Note that each account/installation needs to be restarted (in the background) to receive the updated settings.
Aggregation Service
The Aggregation Service captures data from the local sites and enables one single login to overview all local installations.
OEE value and other KPIs are calculated in real time on the central level using the captured raw data (times and amounts). The resolution of the gathered data is OEE value and amounts per measure point per day.
What data is aggregated?
The following data is captured for each measure point from the connected local
OEE (with A%, P%, Q%) - per day
Uptime - per day
Produced amount - per day
Downtime (with reason codes) - per day
Scrapped amount with reason codes - per day
Reworked amount with reason codes - per day
What is the aggregation interval?
Every day, data from the last 30 days is aggregated. It means that changes done on “local data” not older than 30 days will automatically be updated on the aggregation service.
