Addon Boards on Fire data export
This is an addon for RS Production OEE
Digitize daily management and improvement work with data from RS Production OEE
Make better decisions faster when everyone has access to objective facts.
Save time and manual work by sharing data from RS Production OEE to Boards on Fire.

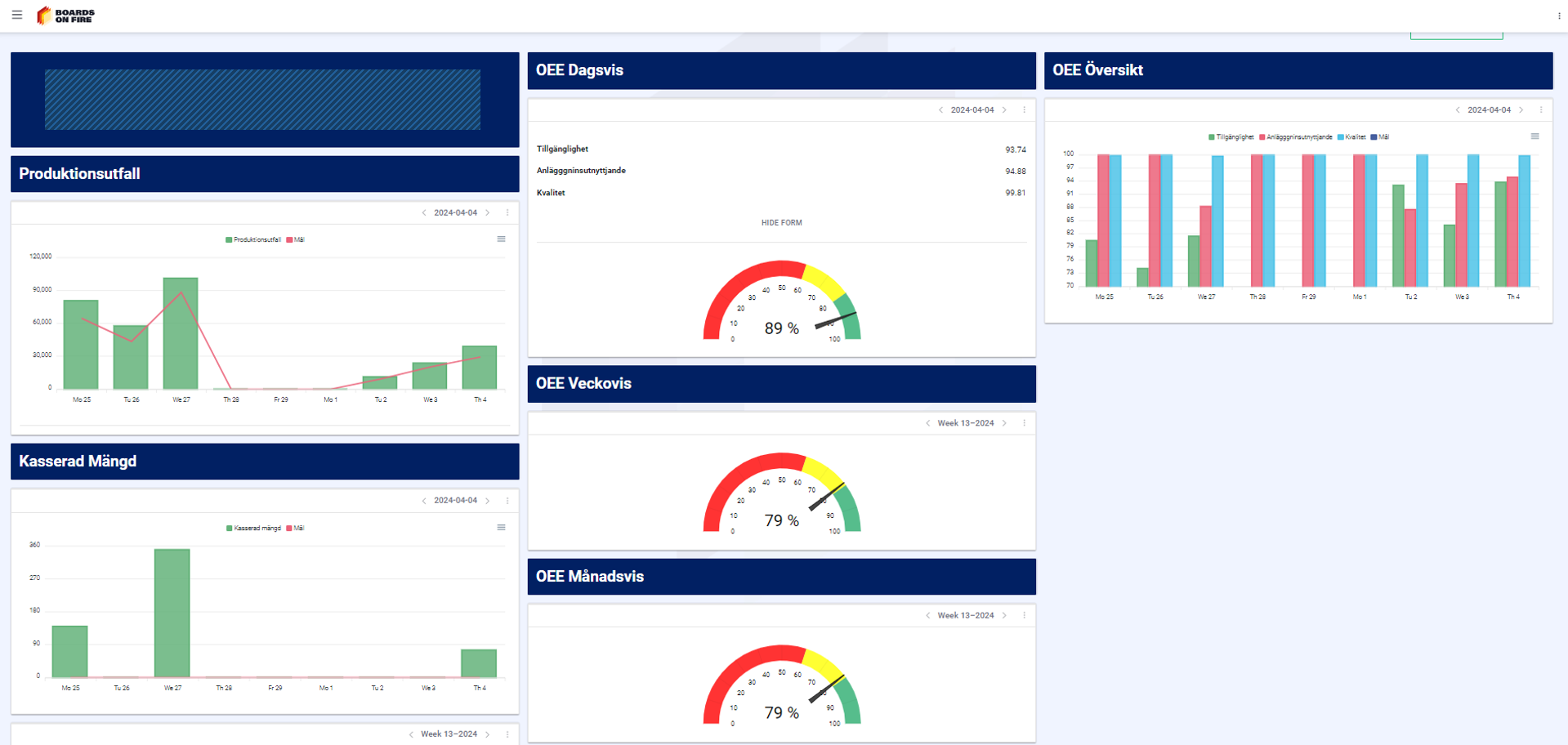

Automatic data export from RS Production OEE to Boards on Fire
![image-20240516-065625.png](../__attachments/1375305750/image-20240516-065625.png?inst-v=2d2ce4fe-fcc1-45f2-9892-260193a60482)
The export includes the following data
Data | Time resolution | |
---|---|---|
Approved amount | per measure point | Per day and week and month |
Scrapped amount | per measure point | Per day and week and month |
OEE % | per measure point | Per day and week and month |
OEE Availability % | per measure point | Per day and week and month |
OEE Performance % | per measure point | Per day and week and month |
OEE Quality % | per measure point | Per day and week and month |
Data export
Hourly data is updated from RS Production OEE to Boards on Fire every hour. The update includes 30 days history. Monthly data includes 6 months history.
Configuration and setup

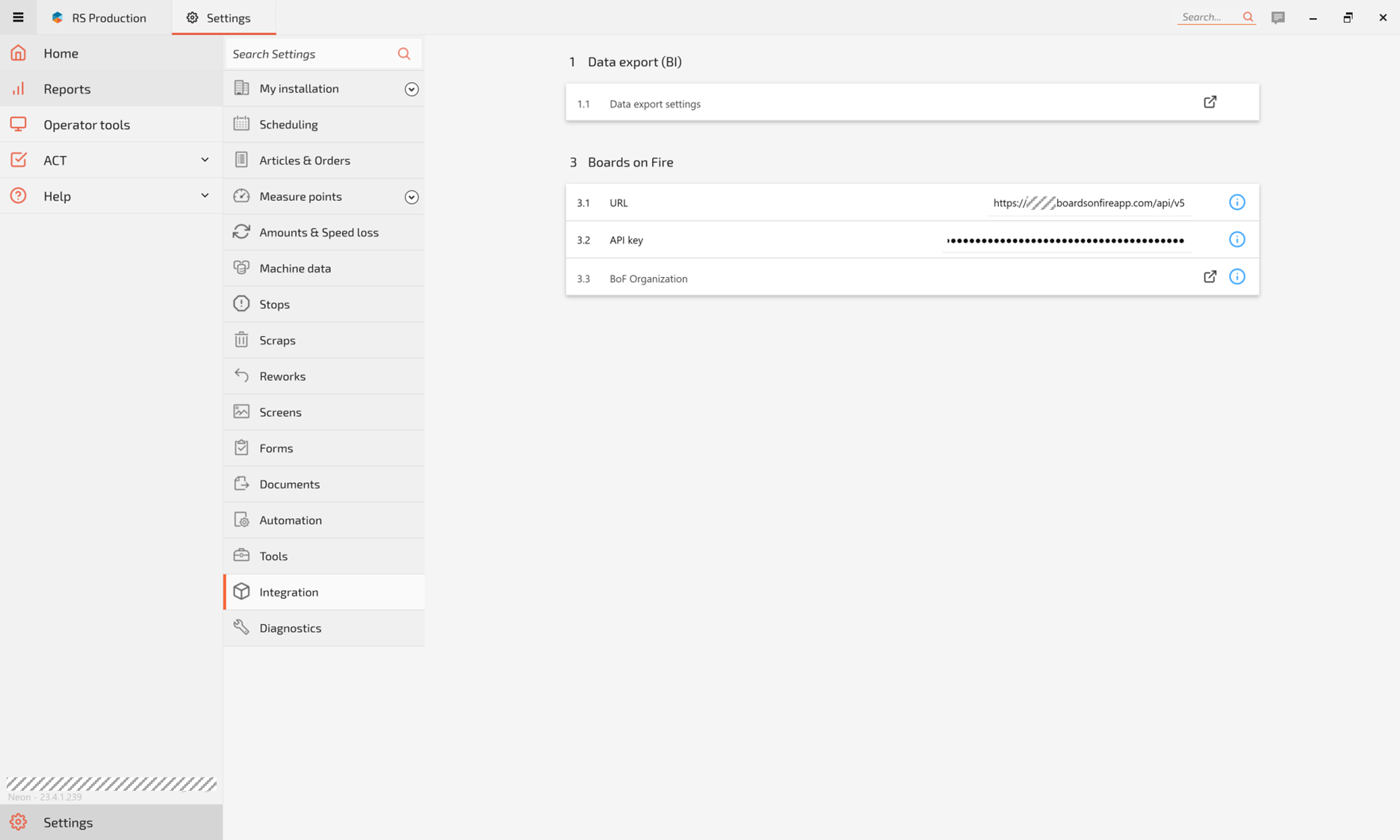

The following is needed from the Boards on Fire environment.
system URL
API key
Next step is to map organisations i Boards on Fire with measure points in RS Production OEE. This is done in Office tools. Note that a new organisation in Boards on Fire can take up to 60 minutes to appear in Office tools.
Take help from Boards on Fire to setup the components with RS Production OEE data on the board.
